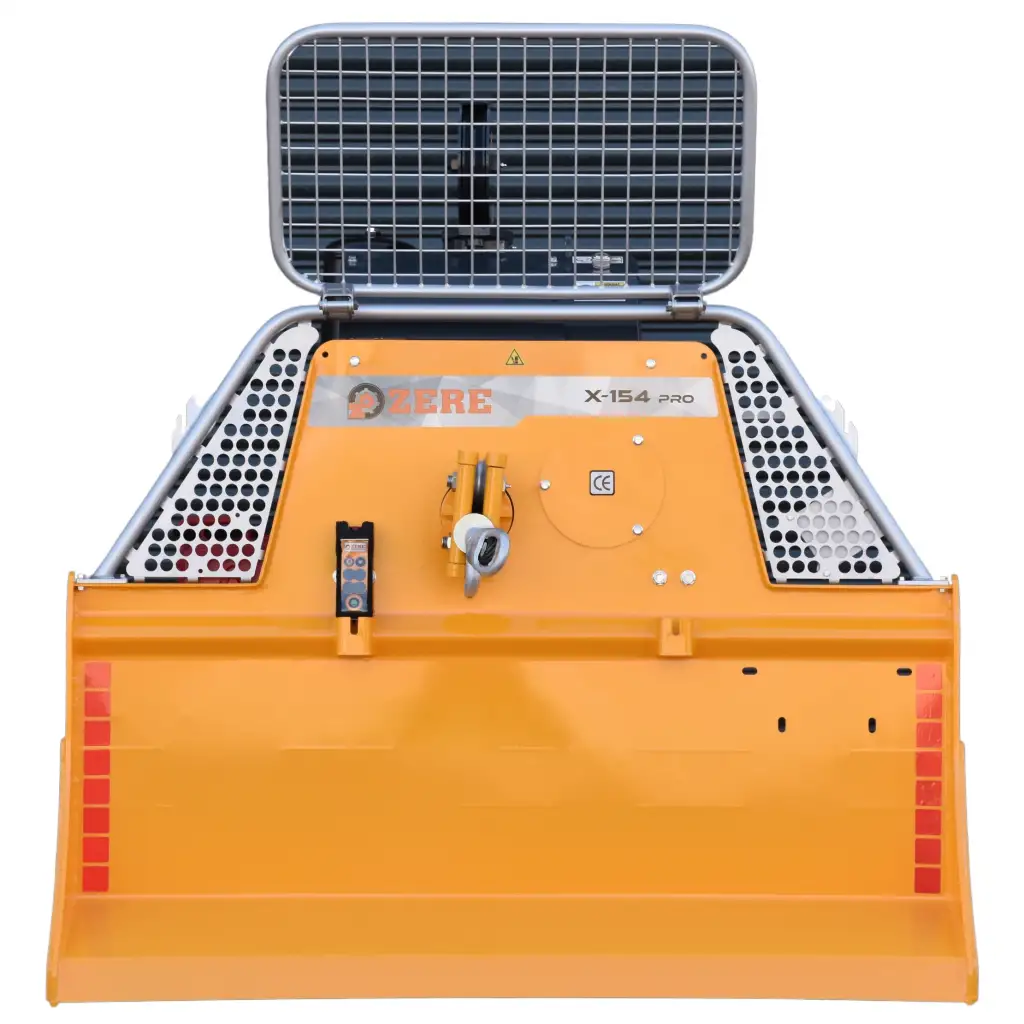

PNEUMATIC
FORESTRY WINCH
Pulling Capacity
20 Tons
Maximum Rope Length
150 m / Ø 14 mm
Weight (Without Rope)
850 kg
Allows high gear ratio and resists shock loads.
Your tools will always be ready for use.
Double-Sided Chain Hanging and Storage Boxes
Ensures uniform winding of the rope along the width of the drum.
Extends the life of the rope by moving according to the rope tension.
Allows the operator to adjust the force as needed for operation.
Enables automatic opening of the rope with remote control.
Foldable window protection for easy transport.
Use the pulling and rope unwinding system remotely and safely.
Two different pin sizes suitable for your tractor.
Your tools and fuel will always be ready for use.
| Pulling Capacity | 20 Tons |
| Brake Capacity | 25 Tons |
| Average Winch Speed | 0.5 m/s |
| Standard Rope Length | 120 m / Ø 14 mm |
| Maximum Rope Length | 150 m / Ø 14 mm |
| Recommended Tractor Power | >67 kW / >90 HP |
| Control | Electro Pneumatic |
| Number of Clutch Plates | 4 |
| Width | 1750 mm *2040 mm |
| Depth | 1150 mm |
| Wire Unprotected Height | 1770 mm |
| Wire Protected Height | 2300 mm |
| Weight (Without Rope) | 850 kg * 590 kg |
| Assembly Category | II, III |
| Radio Remote Control | Standard |
| Rope Unwinding System | Standard |
| Wire Rope Continuous Unwinding Speed Valve | Standard |
| Lower Pulley | Standard |
| Trailer Connection | Standard |
| Motor-Driven Chainsaw Holder | Standard |
